LAKE MICHIGAN CLIMATOLOGY
Sustained Assessment of the Great Lakes
Resources in this Assessment:
Lake Michigan Overview

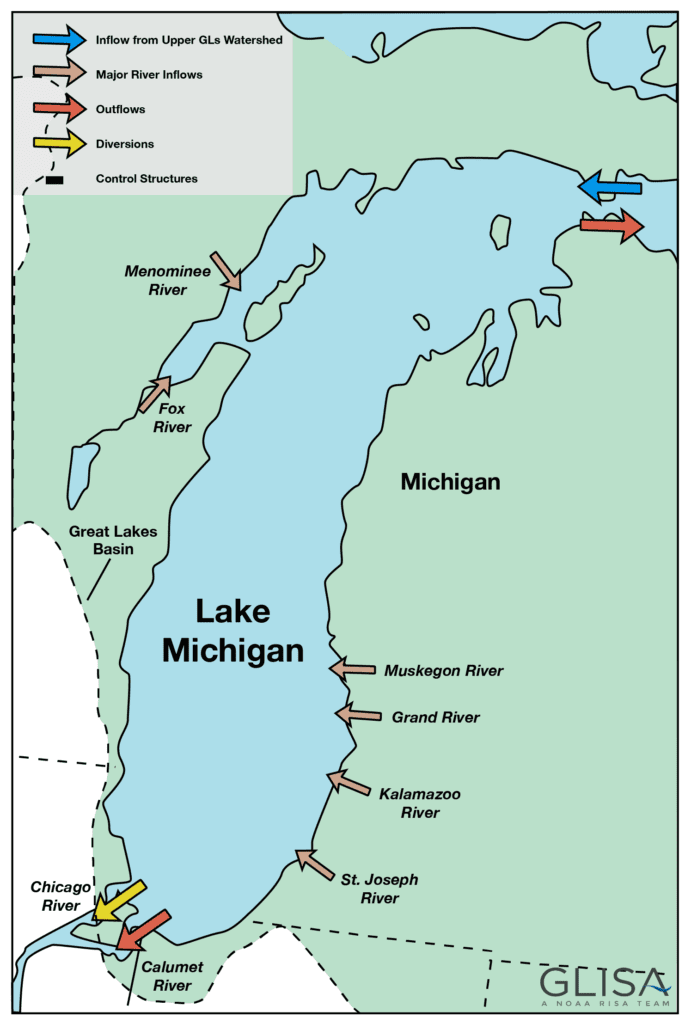

Lake Michigan connects to Lake Huron through the Straits of Mackinac. Lakes Michigan and Huron are treated as one unit for water levels as there is no physical separation between the lake bodies. Water from Lake Michigan is diverted out of the watershed by the Chicago diversion, originally completed in the early 1800s. Its capacity was increased in 1900 after the Chicago Sanitary and Shipping Canal was completed.
|Surface Area||Volume||Average Depth||Max Depth||Shoreline|
|57,753 sq. km||4,918 cu. km||85 m||281 m||2,639 km|
|(22,300 sq. mi)||(1,180 cu. mi)||(729 ft)||(923 ft)||(1,640 mi)|
Variability of water levels in Lake Michigan is observed on many different time spans, including seasonal, monthly, annual, and decadal (Figure 1). Recent years have seen some of the most rapid fluctuations in the recorded history of Great Lakes water levels. Lake Michigan had a sharp decline in water levels beginning in 1998. Following the decline, the lakes were characterized by an approximately 17 year span of warmer temperatures, low ice coverage, increased evaporation rates, and decreased runoff. Though this coincided with the 1998 El Niño, a causal relationship is not established. A rapid increase in Lake Michigan water levels began in 2014, a year that coincided with a cold air outbreak, low temperatures, extensive ice cover, and high precipitation rates. These conditions continued through the end of the decade to reach record highs on several lakes in 2019.
Lake levels oscillate on annual cycles and multi-year periods of high and lows (Figure 2). The periods of sustained highs and lows are variable in length. The Great Lakes, including Lake Michigan, have recently experienced a period of rising water levels, which follows a more than ten-year span of low levels. The past decade was the wettest on record and this record precipitation is the primary contributor to the recent rise in lake levels.
The variability of Lake Michigan water levels is also observed on a decadal time scale (Figure 3). The current decade (2010s) of higher water levels occurred after a period of low lake levels (2000s).
Water levels fluctuate on an annual cycle, rising in the spring and summer due primarily to snowmelt runoff and low evaporation rates, and declining in the fall due to high evaporation rates from the temperature difference between the air (cold) and water (still warm from summer months). On average, the highest lake levels are observed between June and August (Figure 4).
The record lows on Lake Michigan were set in the mid 1960s, with the exception of December and January records that were broken in 2012 and 2013 respectively (Table 1). The record highs on Lake Michigan were set in the mid to late 1980s.
Table 1: Mean, maximum, and minimum water levels in Lake Michigan (Source: Army Corps of Engineers)
Net Basin Supply:
Water levels for an individual lake are driven by the net basin supply (NBS), which depends on the sum of over-lake precipitation and basin-runoff minus over-lake evaporation, as well as how much water flows from one lake to the next. Human-caused diversions, into and out of the lake, are also part of the NBS, but are much smaller than precipitation, runoff, and evaporation (see Lake Levels Overview page for more information).
Over-lake precipitation varies seasonally, with higher totals occurring in the late spring, summer, and early fall months (Figure 5). This seasonality aligns with the seasonal variability of lake levels, with the highest levels occurring at the same time as the greatest total precipitation. Precipitation totals vary annually as well as seasonally, and do not always follow the same pattern year to year.
Runoff rates follow the same general monthly pattern, but can vary in magnitude from year to year (Figure 6). Peak runoff occurs in late spring and early summer, primarily due to snowpack melt. Runoff amounts are also influenced by impervious surfaces such as concrete, that prevent water from entering the soil below, and agricultural practices within the basin.
Evaporation rates follow the same general monthly pattern from year to year. Maximum evaporation occurs in the late fall and winter months with minimum evaporation occurring in the late spring and early summer months (Figure 7). Because water has a higher heat capacity than air, the lake stays warmer in the fall as air temperature falls. This leads to increased evaporation due to the greater difference in temperature between the air and water. Evaporation is also closely related to high and low ice years. When evaporation rates are high in the fall, signifying more heat loss, it creates conditions for a year with high ice cover. Cold lake surface temperatures and high ice cover then reduce evaporation. The same is true for lower evaporation rates in the fall, signifying less heat loss, and low ice cover years. These conditions can then lead to increased evaporation in the following months (see Ice Cover Overview page for more information).
Precipitation, evaporation, and runoff are combined in total net basin supply for Lake Michigan (Figure 8).
The variability of over-lake precipitation, evaporation, runoff, and total net basin supply can also be observed on a decadal time scale (Figures 9, 10, and 11). The most recent decade (2010s) had the most precipitation on record, which contributed to the increase in water levels that was seen throughout the Great Lakes, including Lake Michigan. High runoff totals were also observed, primarily due to the high precipitation totals that have been recorded in the 2010s. NBS is the combination of precipitation, runoff, and evaporation, modeled by the equation: NBS = P + R – E (Figure 12).
There are multiple factors that lead to the differing levels of ice cover between the different lakes including depth, surface area, and latitude. The depth of Lake Michigan allows for the storage of heat which is later lost due to the relatively large surface area of the lake, leading to more favorable conditions for the formation of ice (Figure 13).
During the winter months, Lake Michigan experiences varying levels of ice coverage. On average, higher ice coverage is observed closer to the coasts and channels due to more shallow water and protection from winds and currents (Figure 14). Below average ice cover was observed during most years in the past decade for most of the lake surface area. Though there were individual years with high ice cover, such as 2014 and 2019, the overall decadal average was low.
When considering annual maximum or average ice cover in the Great Lakes, it is common to treat each “ice year” as the period between December (of the previous year) and May (of the current year), as this is when freezing events occur in the region. Figure 15 demonstrates this, with peak ice cover between February and March almost no ice cover in the beginning of December and the middle of May.
There is variability in Lake Michigan ice cover throughout the ice year as well as between different years. Natural modes of climate variability can influence ice coverage. Years with strong El Niño Southern Oscillation (ENSO) events contribute to lower maximum ice coverage, while years with polar vortex intrusions generally lead to higher maximum ice coverage (Figure 16).
Lake Surface Temperature
Surface temperatures of Lake Michigan follow a monthly pattern with the warmest temperatures occurring in late summer and early fall and the coolest temperatures occurring in late winter and early spring (Figure 17).
Basin Air Temperature
Despite year to year variability, an overall warming trend in air temperature has been observed in the Lake Michigan basin from 1948 to 2014 (Figure 18).
Despite an overall warming trend, very warm or very cold years still occur due to annual variability (Figure 19). There are extreme high and low average temperatures throughout the period of record, but recent average temperatures are generally higher than in the past.
